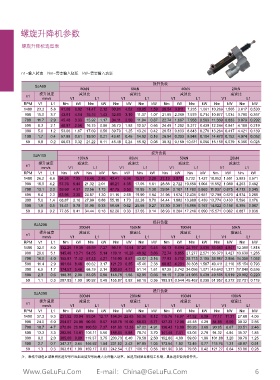

Page 8 - 方型絲桿升降機手冊
P. 8
螺旋升降機參數(shù)
螺旋升降機選型表
n1=輸入轉(zhuǎn)速 Nm=需要輸入扭矩 kW=需要輸入功率
提升負載
SJA80
80kN 60kN 40kN 20kN
提升速度 減速比 減速比 減速比 減速比
n1
mm/s V1 L1 V1 L1 V1 L1 V1 L1
RPM V1 L1 Nm kW Nm kW Nm kW Nm kW Nm kW Nm kW Nm kW Nm kW
1400 23.3 5.8 41.08 6.02 14.47 2.12 30.81 4.52 10.85 1.59 20.54 3.011 7.235 1.061 10.269 1.505 3.617 0.530
900 15.0 3.7 43.91 4.14 15.16 1.43 32.93 3.10 11.37 1.07 21.95 2.069 7.579 0.714 10.977 1.034 3.790 0.357
700 11.7 2.9 45.48 3.33 15.92 1.17 34.11 2.50 11.94 0.87 22.74 1.667 7.958 0.583 11.369 0.833 3.979 0.292
500 8.3 2.1 48.97 2.56 16.75 0.88 36.73 1.92 12.57 0.66 24.49 1.282 8.377 0.439 12.244 0.641 4.189 0.219
300 5.0 1.2 53.06 1.67 17.69 0.56 39.79 1.25 13.26 0.42 26.53 0.833 8.843 0.278 13.264 0.417 4.421 0.139
100 1.7 0.4 57.88 0.61 19.90 0.21 43.41 0.45 14.92 0.16 28.94 0.303 9.948 0.104 14.470 0.152 4.974 0.052
50 0.8 0.2 60.63 0.32 21.22 0.11 45.48 0.24 15.92 0.08 30.32 0.159 10.611 0.056 15.159 0.079 5.306 0.028
提升負載
SJA100
100kN 80kN 50kN 20kN
n1 提升速度 減速比 減速比 減速比 減速比
mm/s V1 L1 V1 L1 V1 L1 V1 L1
RPM V1 L1 Nm kW Nm kW Nm kW Nm kW Nm kW Nm kW Nm kW Nm kW
1400 26.2 6.6 54.26 7.95 19.46 2.85 43.41 6.36 15.57 2.28 27.13 3.977 9.732 1.427 10.852 1.591 3.893 0.571
900 16.9 4.2 57.76 5.44 21.32 2.01 46.21 4.35 17.05 1.61 28.88 2.722 10.658 1.004 11.552 1.089 4.263 0.402
700 13.1 3.3 59.69 4.37 23.56 1.73 47.75 3.50 18.85 1.38 29.84 2.187 11.780 0.863 11.937 0.875 4.712 0.345
500 9.4 2.3 63.95 3.35 24.87 1.30 51.16 2.68 19.90 1.04 31.98 1.674 12.435 0.651 12.790 0.670 4.974 0.260
300 5.6 1.4 68.87 2.16 27.98 0.88 55.10 1.73 22.38 0.70 34.44 1.082 13.989 0.439 13.774 0.433 5.596 0.176
100 1.9 0.5 74.61 0.78 31.98 0.33 59.69 0.62 25.58 0.27 37.30 0.391 15.988 0.167 14.922 0.156 6.395 0.067
50 0.9 0.2 77.85 0.41 34.44 0.18 62.28 0.33 27.55 0.14 38.93 0.204 17.218 0.090 15.571 0.082 6.887 0.036
提升負載
SJA200
200kN 150kN 100kN 50kN
提升速度 減速比 減速比 減速比 減速比
n1 mm/s V1 L1 V1 L1 V1 L1 V1 L1
RPM V1 L1 Nm kW Nm kW Nm kW Nm kW Nm kW Nm kW Nm kW Nm kW
1400 32.0 8.0 132.25 19.39 49.59 7.27 99.19 14.54 37.20 5.45 66.13 9.694 24.797 3.635 33.063 4.847 12.399 1.818
900 20.6 5.1 145.48 13.71 54.55 5.14 109.11 10.28 40.92 3.86 72.74 6.855 27.277 2.571 36.370 3.427 13.639 1.285
700 16.0 4.0 155.87 11.42 57.43 4.21 116.90 8.57 43.07 3.16 77.93 5.712 28.713 2.105 38.967 2.856 14.356 1.052
500 11.4 2.9 161.64 8.46 60.62 3.17 121.23 6.35 45.46 2.38 80.82 4.231 30.308 1.587 40.411 2.116 15.154 0.793
300 6.9 1.7 174.57 5.48 68.19 2.14 130.93 4.11 51.14 1.61 87.29 2.742 34.096 1.071 43.643 1.371 17.048 0.536
100 2.3 0.6 198.38 2.08 83.93 0.88 148.78 1.56 62.95 0.66 99.19 1.039 41.965 0.439 49.595 0.519 20.982 0.220
50 1.1 0.3 207.83 1.09 90.92 0.48 155.87 0.82 68.19 0.36 103.91 0.544 45.462 0.238 51.957 0.272 22.731 0.119
提升負載
SJA300
300kN 200kN 150kN 100kN
提升速度 減速比 減速比 減速比 減速比
n1 mm/s V1 L1 V1 L1 V1 L1 V1 L1
RPM V1 L1 Nm kW Nm kW Nm kW Nm kW Nm kW Nm kW Nm kW Nm kW
1400 37.3 9.3 231.52 33.94 83.04 12.17 154.34 22.63 55.36 8.12 115.76 16.97 41.52 6.09 77.17 11.31 27.68 4.06
900 24.0 6.0 254.67 24.00 90.95 8.57 169.78 16.00 60.63 5.71 127.33 12.00 45.48 4.29 84.89 8.00 30.32 2.86
700 18.7 4.7 272.86 20.00 100.53 7.37 181.90 13.33 67.02 4.91 136.43 10.00 50.26 3.68 90.95 6.67 33.51 2.46
500 13.3 3.3 282.96 14.81 106.11 5.56 188.64 9.88 70.74 3.70 141.48 7.41 53.06 2.78 94.32 4.94 35.37 1.85
300 8.0 2.0 305.60 9.60 119.37 3.75 203.73 6.40 79.58 2.50 152.80 4.80 59.69 1.88 101.88 3.20 39.79 1.25
100 2.7 0.7 347.27 3.64 146.92 1.54 231.52 2.42 97.95 1.03 173.64 1.82 73.46 0.77 115.76 1.21 48.97 0.51
50 1.3 0.3 363.81 1.90 159.17 0.83 242.54 1.27 106.11 0.56 181.90 0.95 79.58 0.42 121.27 0.64 53.06 0.28
注：表格中綠色區(qū)域表明所選型號已經(jīng)超出該型號的最大允許輸入功率，如選用則適當降低工作制，具體選型咨詢格魯夫。
