擺線型號(hào)
|

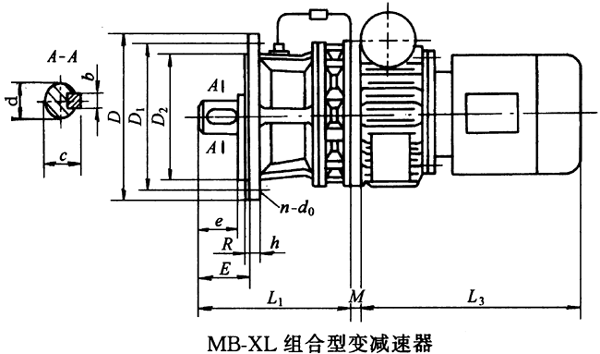

安裝尺寸
|
||||||||||||||
|
D1
|
D2
|
E
|
h
|
R
|
n
|
d0
|
d(h6)
|
b
|
c
|
e
|
D
|
L1
|
M
|
L3
|
|
|
X2
|
160
|
140
|
40
|
12
|
3
|
4
|
11
|
30
|
8
|
33
|
35
|
190
|
165
|
21.5
|
按所配MBLY尺寸
|
|
X3
|
200
|
170
|
50
|
15
|
4
|
6
|
12
|
35
|
10
|
38
|
55
|
230
|
200
|
21.5
|
|
|
X4
|
230
|
200
|
79
|
15
|
4
|
6
|
11
|
45
|
14
|
49.5
|
63
|
260
|
240
|
25
|
|
|
X5
|
310
|
270
|
90
|
20
|
4
|
6
|
11
|
55
|
16
|
59
|
79
|
340
|
310
|
27
|
|
|
X6
|
360
|
316
|
91
|
22
|
5
|
8
|
15
|
65
|
18
|
69
|
80
|
400
|
353
|
27
|
|
|
X7
|
390
|
345
|
112
|
22
|
5
|
8
|
18
|
80
|
22
|
85
|
100
|
430
|
390
|
27
|
|
|
X8
|
450
|
400
|
111
|
30
|
6
|
12
|
18
|
90
|
25
|
95
|
110
|
490
|
440
|
23
|
|
|
X9
|
520
|
455
|
169
|
30
|
8
|
12
|
22
|
100
|
28
|
106
|
130
|
580
|
552
|
25
|
|
|
X10
|
590
|
520
|
173
|
40
|
10
|
12
|
22
|
110
|
28
|
116
|
150
|
650
|
612
|
28
|
|
